Allied Witan Brand of Automuffler Silencers and Mufflers

Allied Group manufactures replacement filters for the Allied Witan brand of Automuffler Silencers and Mufflers, also called Alwitco mufflers or Alwitco Silencers.

Allied Group also manufactures replacement elements for the Automuffler brand.

Our line of air silencer mufflers for industrial muffler applications will help keep the noise level at a safe decibel. Our industrial exhaust silencers are used in many industries for a variety of silencer applications, including but not limited to the following:

Compressed air exhaust applications that need a silencer, muffler or coalescing filter to reduce the noise and/or capture any oil mist that is not supposed to be expelled into the atmosphere

Blowers that exhaust noise and aerosols, and were the exhaust decibel level is too high and needs a silencer or muffler.

Injection molding machines where the ports are exhausting too much noise and need to be silenced.

Pneumatic Exhaust muffler applications. Many of these applications require the noise level to be reduced and also for the compressed air to be coalesced so the oil aerosols are not expelled into the atmosphere. Our line of pneumatic exhaust mufflers will reduce the noise to a safe level.

• Pneumatic tools and equipment
• Pneumatic Cylinders
• Pneumatc Motors
• Pneumatic Valves
• Vacuum Pumps silencer muffler

We can also provide coalescing filters at the exhaust ports to remove any oil from being injected into the air.

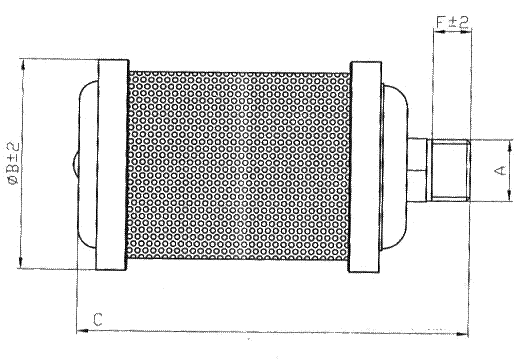

	A (thread)	F	B	C
Allied Group Part Number	Male NPT	MM (Inches)	MM (Inches)	MM (Inches)	Allied Witan Model Number	Allied Witan Item Number	Allied Witan Part Number
Allied LX-06	1/8	9.5mm (0.374”)	47mm (1.85”)	80mm+/-2.5mm (3.15”)	M01	0111001	44AW56M01
Allied LX-08	1/4	11.5mm (0.453”)	47mm (1.85”)	111mm+/-3mm (4.37”)	M02	0111002	44AW56M02
Allied LX-10	3/8	13mm (0.512”)	66mm (2.598”)	130mm+/-3mm (5.118”)	M00	0111000	44AW56M00
Allied LX-15	1/2	14.5mm (0.571”)	80mm (3.15”)	148mm+/-3mm (5.827”)	M05	0111005	44AW56M05
Allied LX-20	3/4	17mm (0.669”)	86.5mm (3.406”)	184mm+/-3.5mm (7.244”)	M07	0111007	44AW56M07
Allied LX-25	1	22mm (0.866”)	99mm (3.898”)	222mm+/-3.5mm (8.74”)	M10	0111010	44AW56M10
Allied LX-32	1 1/4	22mm (0.866”)	99mm (3.898”)	226mm+/-3.5mm (8.898”)	M12	0111012	44AW56M12
Allied LX-40	1 1/2	25mm (0.984”)	133.5mm (5.256”)	340mm+/-5mm (13.386”)	M15	0111015	44AW56M15
Allied LX-50	2	26mm (1.024”)	133.5mm (5.256”)	470mm+/-5mm (18.504”)	M20	0111020	44AW56M20

Disclaimer
Replacement elements will not always fit into the metal screen tightly due to metal Allied Witans muffler tolerances being inconsistant.
